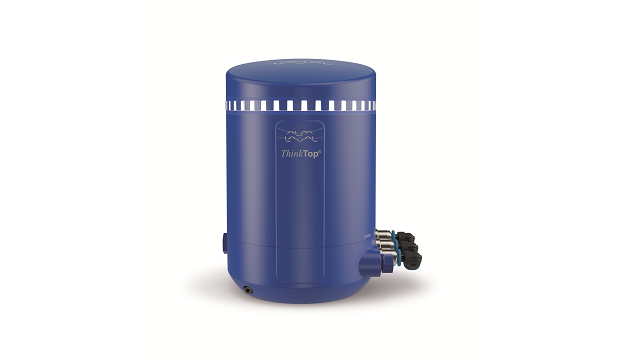

The compact Alfa Laval ThinkTop V70 is the second-generation of the leading sensing and control units for hygienic valves. It can be fitted with up to three solenoid valves and ensures unmatched control of all Alfa Laval valves used in the dairy, food, beverage, brewery and pharmaceutical industries.
Intuitive, intelligent hygienic valve control
- Fast, intuitive setup takes place in seconds
- Smart control with 24/7 self-diagnostics
- 360° LED visual status indication, visible from any direction
- Built-to-last: IP69K rating and vibration proof
- Fastest ever burst seat cleaning reduces water consumption by up to 90%
Maintain your peace of mind and control your hygienic valves effortlessly with the Alfa Laval ThinkTop V70 valve control units. Enjoy minimalist aesthetic housing made of composite material with a single sensor target control board to handle all valve functions and communication. No adapters, special tools or cover screws required. Non-crossing, colour-coded air hoses ensure straightforward connections.
How it works
The Alfa Laval ThinkTop V70 valve control units offer a single-sensor solution for butterfly, single-seat and mixproof valves; a single control unit can be fitted with up to three solenoid valves. ThinkTop valve control unit converts the electrical PLC output signals into mechanical energy to energize or de-energize the air-operated valve, using the physical sensor target mounted on the valve stem.
Installation with auto setup is intuitive and fast. To initiate auto setup, simply press the “Select” button and then the “Enter” button to begin the setup sequence. The process is completed in accordance with the number of solenoid valves fitted to the control unit. Alternatively, the ThinkTop valve control unit can be set up without dismantling the control head using the built-in “Live setup” feature for remote configuration.
